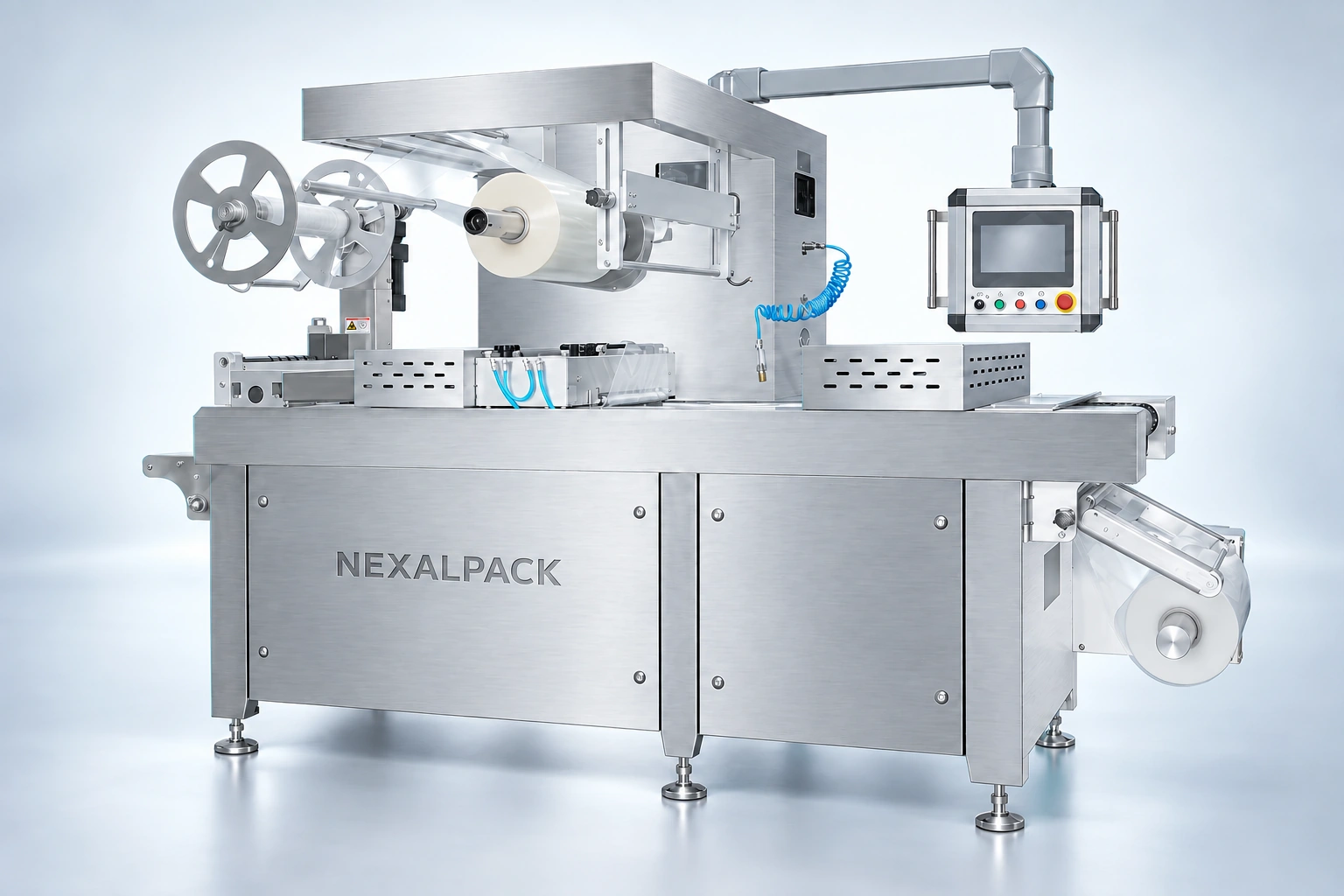

NEX-320A(Q)
Compact thermoformer
A short-format thermoforming line for production areas where floor space matters.
Enlarge image ↗Explore the machine.
Select a view to see the details.

Flexible vacuum pack
Vacuum-packed sausages.
Packaging example. Final pack dimensions, materials and tooling are selected for your product.
Plan your packaging ↗Designed for your application.
- 304 stainless steel and aluminium-alloy construction.
- 10.1-inch PLC touchscreen.
- 200 m³/h Busch vacuum pump and external chiller.

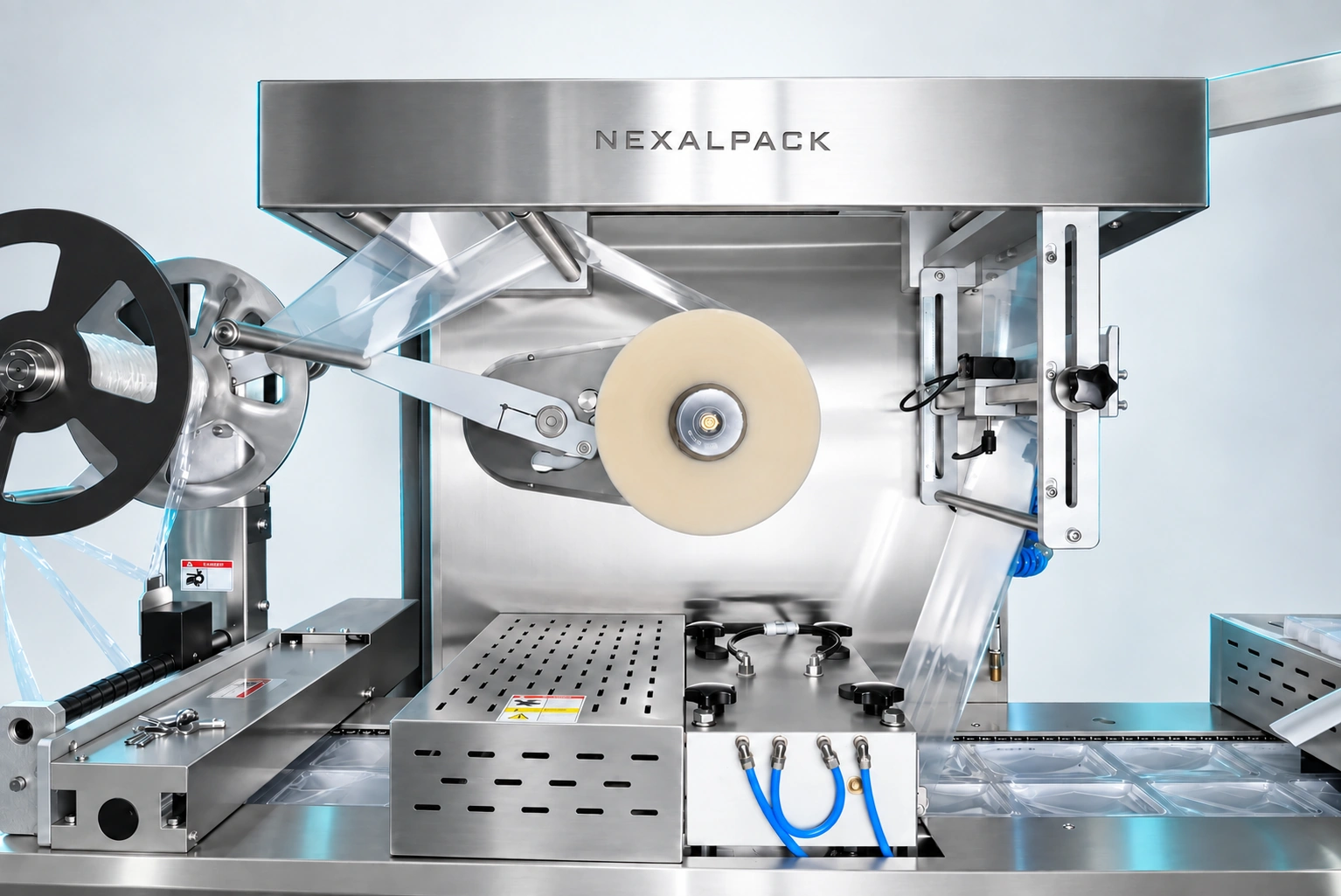

- Film-clamping chain and interchangeable moulds.
- Optional automatic feeding, labelling and printing; flat, toothed or easy-tear cross-cut styles.
- Automatic bottom-film conveying and forming system; customisable for material sizes
- 10.1-inch PLC touch screen
- 304 stainless steel and aluminium alloy construction
- Imported film-clamping chain
- Interchangeable moulds with four locks; mould change in about 20 minutes
- Mould inserts for shallower packs
- External chiller and Busch vacuum pump
- Customisable labelling/printing equipment
- Customisable cross-cut sealing profiles: toothed, flat and easy-tear
- Customisable automatic feeding device
Technical specifications.
| Specification | Value |
|---|---|
| Supply voltage | 380V/50HZ 3P |
| Sealing power (W) | 2000 |
| Air pressure (MPa) | 0.5-0.8 |
| Upper film width (mm) | 292 |
| Bottom film width (mm) | 322 |
| Chamber size (L × W) (mm) | 284*(200-400) |
| Capacity (cycles/min) | Vacuum + heat sealing: 4-6 cycles/min |
| Pump capacity (m³/h) | 200 |
| Max. forming depth (mm) | ≤120 |
| Dimensions (L × W × H) (mm) | 3012*1014*1905 |
Indicative technical data. “—” means no value is defined for that item. The final configuration and specifications are confirmed in our quotation for your product and format.
