Film & tooling
Configurable film width, film type, mould size, shape and depth. Custom-width example: 423 mm bottom film and 405 mm top film. Confirm compatibility with your chosen machine.
Solutions / ThermoformingNEXALPACK MACHINE RANGE
Thermoforming packaging machines
From compact rollstock systems to high-output and aluminium-film configurations. Explore all seven models and their technical data.
Compact
1 model
Standard
3 models
Standard↗
NEX-320A
Rollstock thermoformer
4–6 cycles/min322 mm bottom film
Full specifications →Standard↗
NEX-420A
Versatile thermoformer
4–6 cycles/min422 mm bottom film
Full specifications →Standard↗
NEX-520A
Wide-format thermoformer
4–6 cycles/min522 mm bottom film
Full specifications →High output
1 model
Rigid film
1 model
Aluminium film
1 model
Compare the range.
| Model | Configuration | Rate / pump capacity | Film / sealing area |
|---|---|---|---|

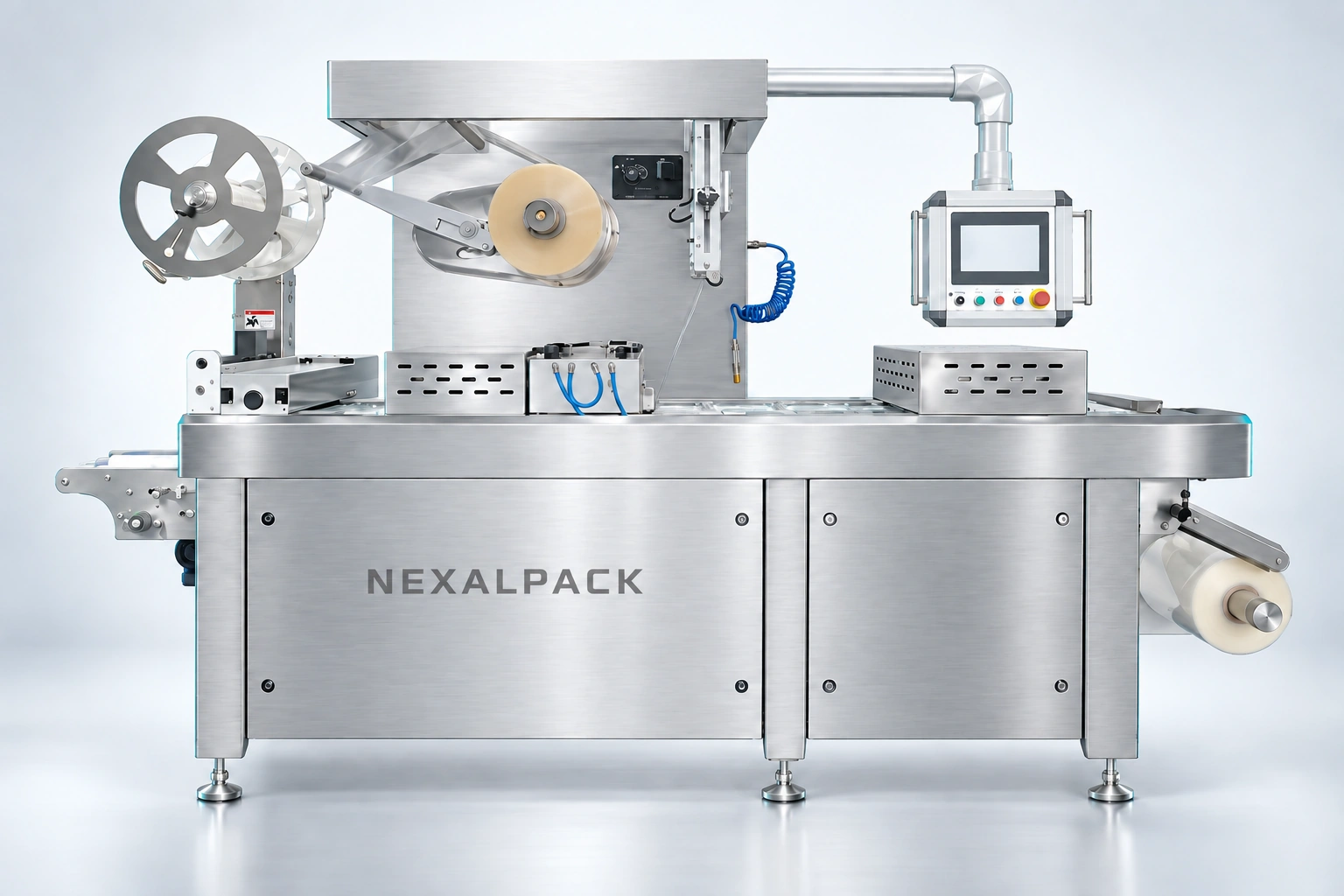

| NEX-320A (Q) ↗ | Compact | 4–6 cycles/min | 322 mm bottom film |
| NEX-320A ↗ | Standard | 4–6 cycles/min | 322 mm bottom film |
| NEX-420A ↗ | Standard | 4–6 cycles/min | 422 mm bottom film |
| NEX-520A ↗ | Standard | 4–6 cycles/min | 522 mm bottom film |

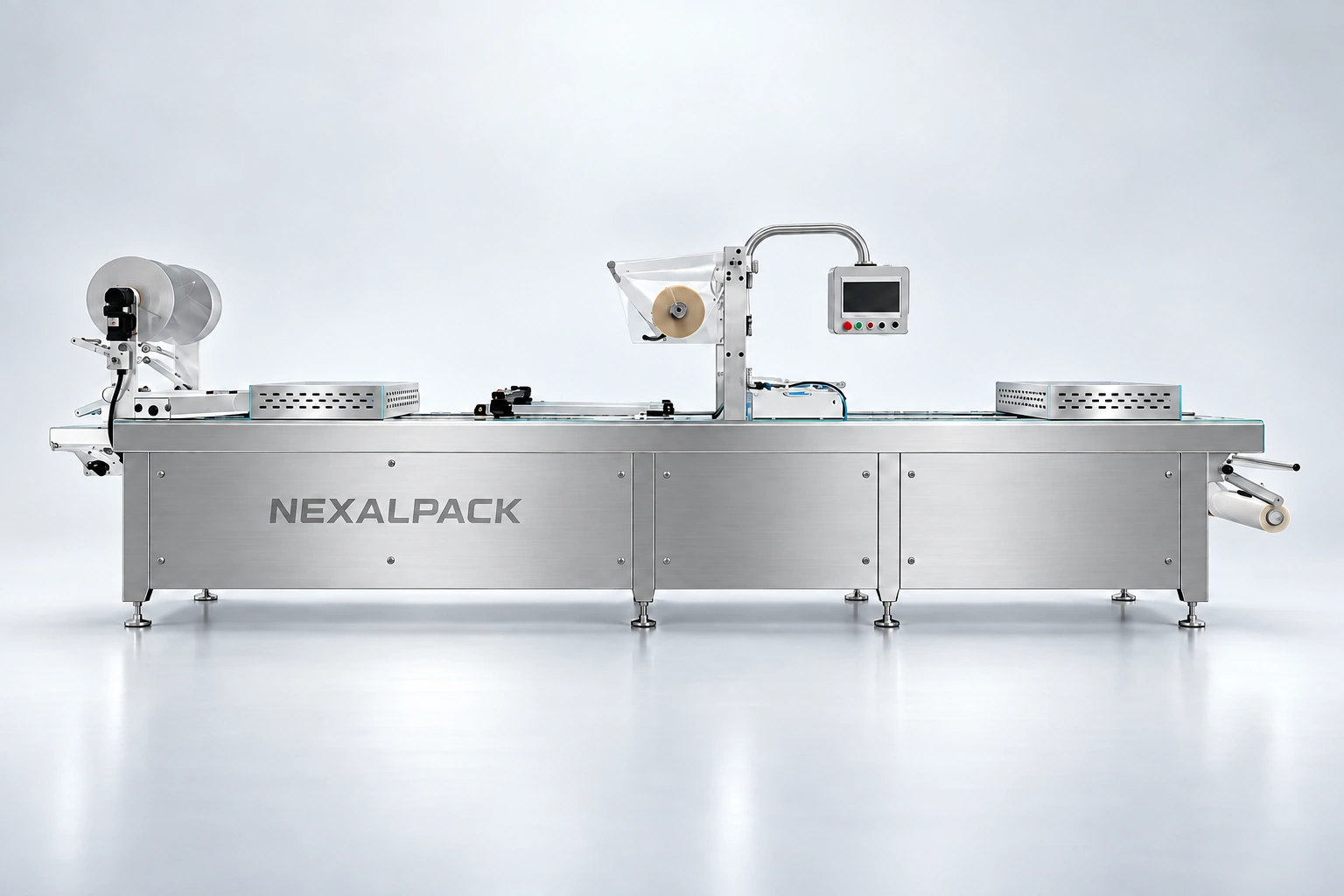

| NEX-420A-U ↗ | High output | 12 vacuum / 8 MAP cycles/min | 422 mm bottom film |

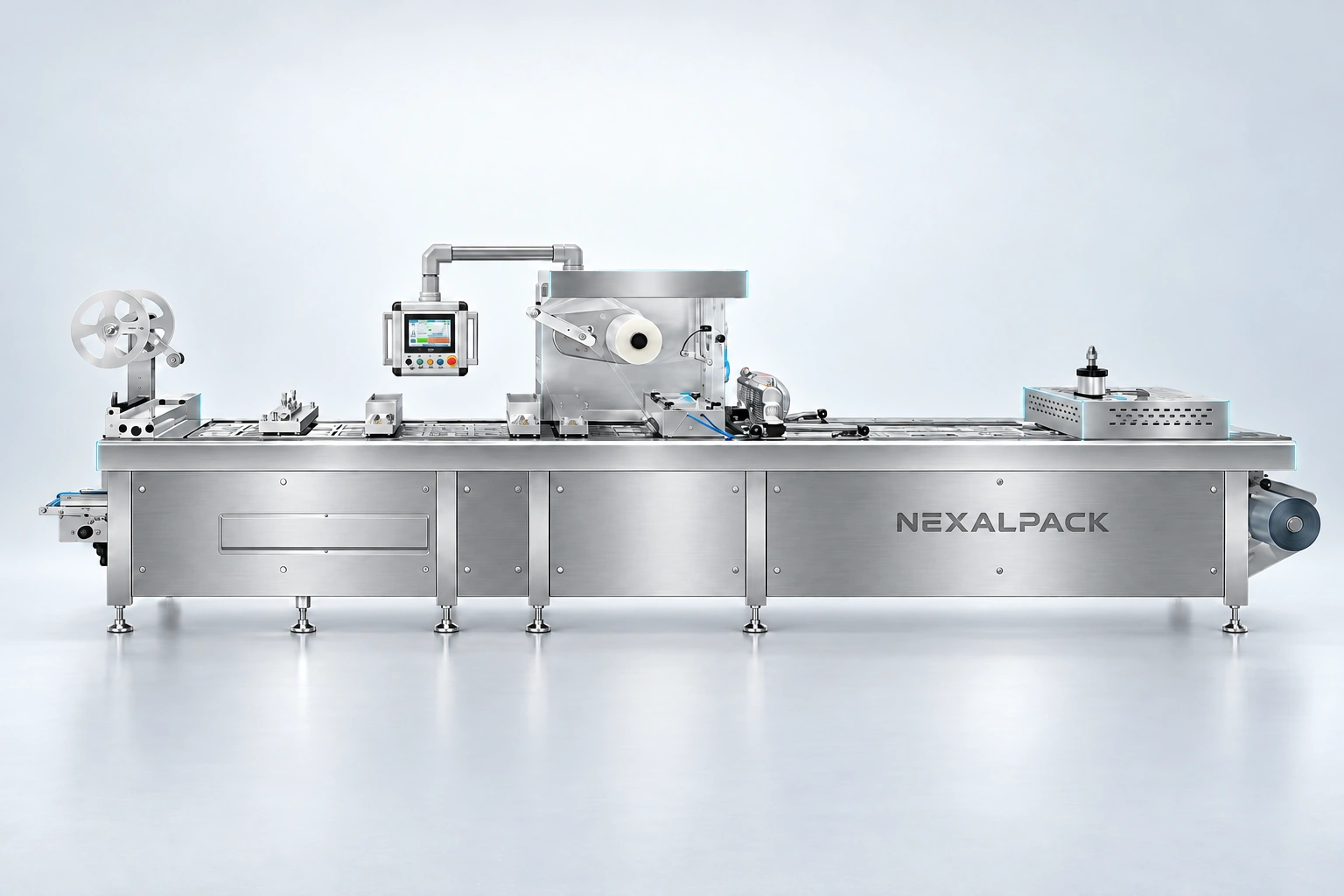

| NEX-420T (Q) ↗ | Rigid film | 4–6 cycles/min | 422 mm bottom film |

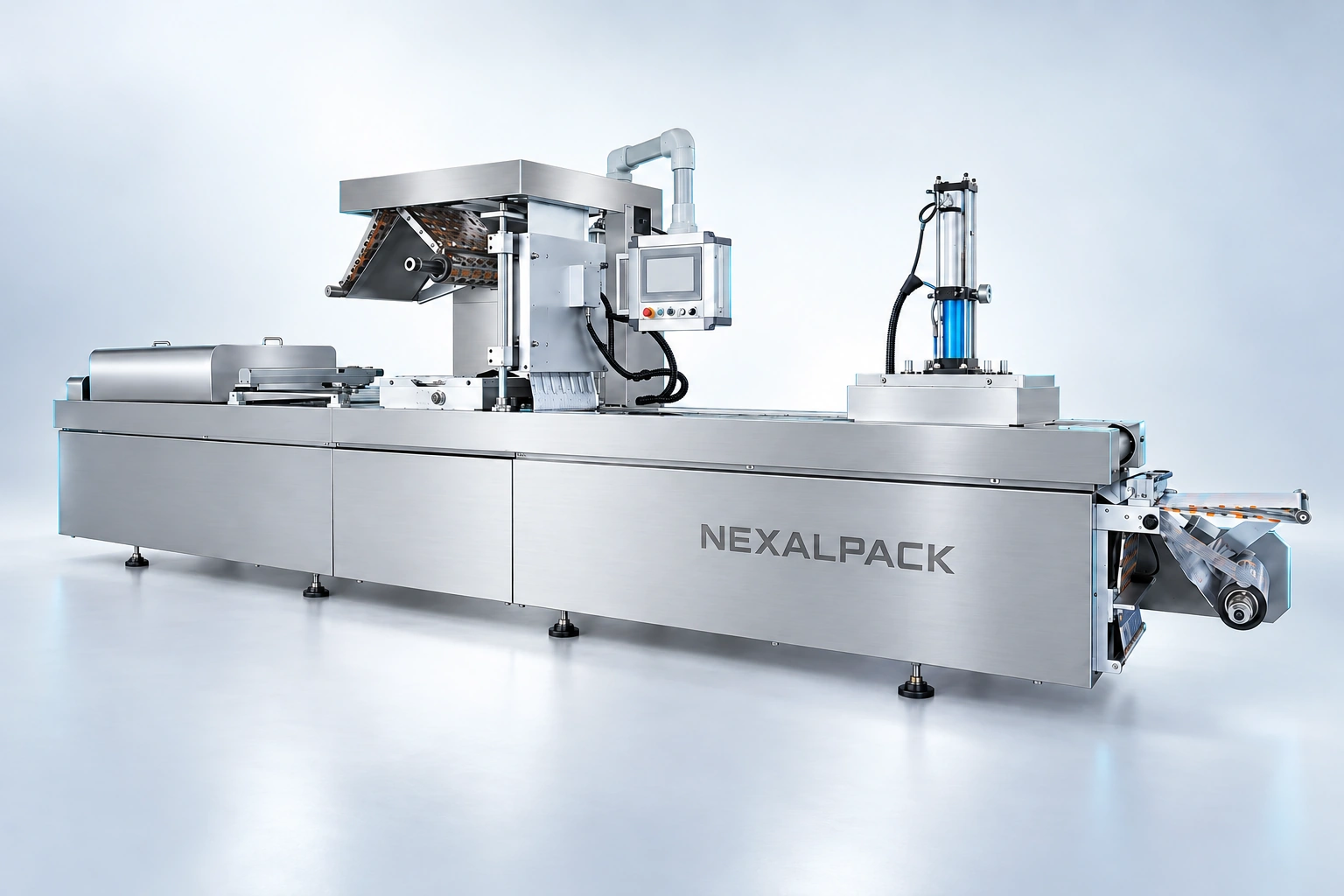

| NEX-420S ↗ | Aluminium film | 4–6 cycles/min | 422 mm bottom film |
Cycle rates are not packs per minute. Output depends on the number of packs per cycle, product, materials and selected process. Figures on each model page are indicative and confirmed in our quotation.
Additional series-level specifications
Indicative figures for each series. Each model’s specifications are on its own page.
| Model | Film | Packaging | Forming Depth (mm) | Capacity (Cycles/min) | External Dimension x (L×W×H) (mm) | Best For |
|---|---|---|---|---|---|---|
| NEX-A Series | Flexible Film| Rigid Film | Vacuum| MAP| VSP | 80 | 4-6 (Vacuum+Sealing) | 5200×(1005-1205)×1895 | General-Purpose High-Speed Packaging |
| NEX-A(Q) Series | Flexible Film| Rigid Film | Vacuum| MAP| VSP | 120 | 4-6 (Vacuum+Sealing) | 3012×1014×1905 | Deep-Draw & Large Product Packaging |
| NEX-S Series | Aluminium compound film | Vacuum| MAP| VSP | Upper Film: ≤5 Bottom Film ≤10 | 4-6 (Vacuum+Sealing) | 5200×(1005-1205)×1895 | Aluminum Foil Packaging |
| NEX-A-U Series | Flexible Film| Rigid Film | Vacuum| MAP| VSP | 120 | Vacuum: 12 Vac-gas flush: 8 | without coder: 4770×915×1875 with coder: 5770×915×1875 | High-Output Vacuum & MAP Packaging |
Configure the complete line.
Loading & finishing
Multihead dosing, delta-robot loading and liquid filling; inkjet, laser or ribbon coding, labelling and output conveyors. Easy-tear edges and cutting styles can be configured.
Utilities & controls
External chiller, vacuum-pump configuration, motorised or suction waste collection, gas regulation and interface language are considered with the line layout.
PRODUCTS. PACKS. POSSIBILITIES.
See what packaging can do.
Real packaged-product examples across different applications.
Solutions by product
Meat and sliced meat packaging machines
A meat cut, a sausage and a sliced product need different packs. Machine selection starts with portion size, product shape and the presentation your customer needs.
Fish and seafood packaging machines
Salmon fillets, fish portions and seafood differ in height, moisture and handling needs. The retail format and intended storage conditions help determine whether a thermoformed pack or a preformed tray is appropriate.
Ready meal tray sealing machines
A pasta tray, a meal with sauce and a multi-compartment menu need an appropriate combination of tray, film and process. Selection must also consider how each portion is filled, conveyed and presented.
