Thermoforming / NEX-420A-U
High output · NEXALPACK

NEX-420A-U

High-output thermoformer

Servo-driven forming, sealing and cutting for higher-output vacuum and gas-flush packaging.

12 vacuum / 8 MAP cycles/min422 mm bottom film
Enquire about this model ↗Technical specifications ↓
NEX-420A-U High-output thermoformer — studio renderEnlarge image ↗
Studio render of the machine.
A CLOSER LOOK

Explore the machine.

Select a view to see the details.

NEX-420A-U High-output thermoformer — studio render
Main view · Studio render.

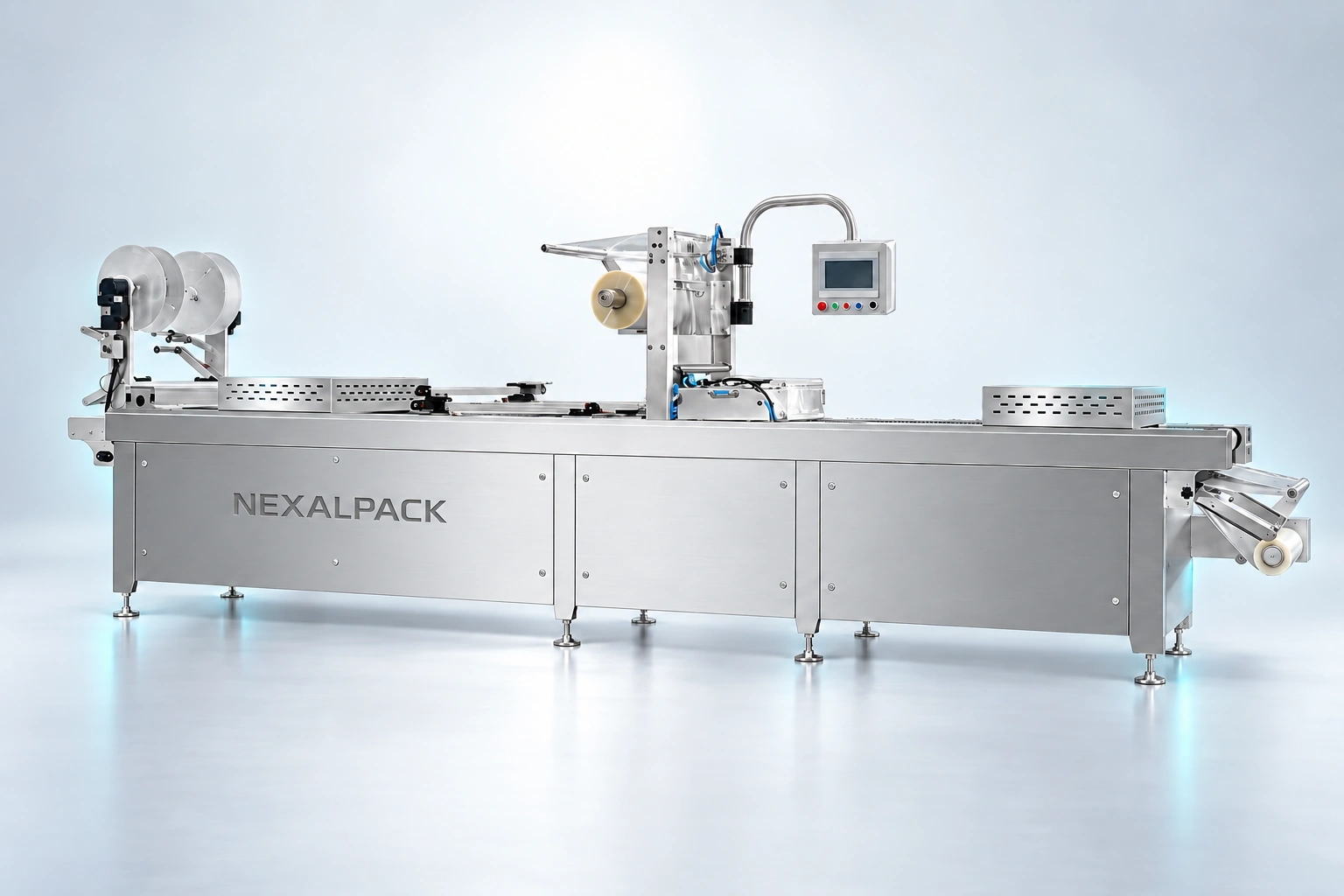

Studio render of NEX-420A-U thermoformer: three-quarter view
Three-quarter full machine · Studio render.

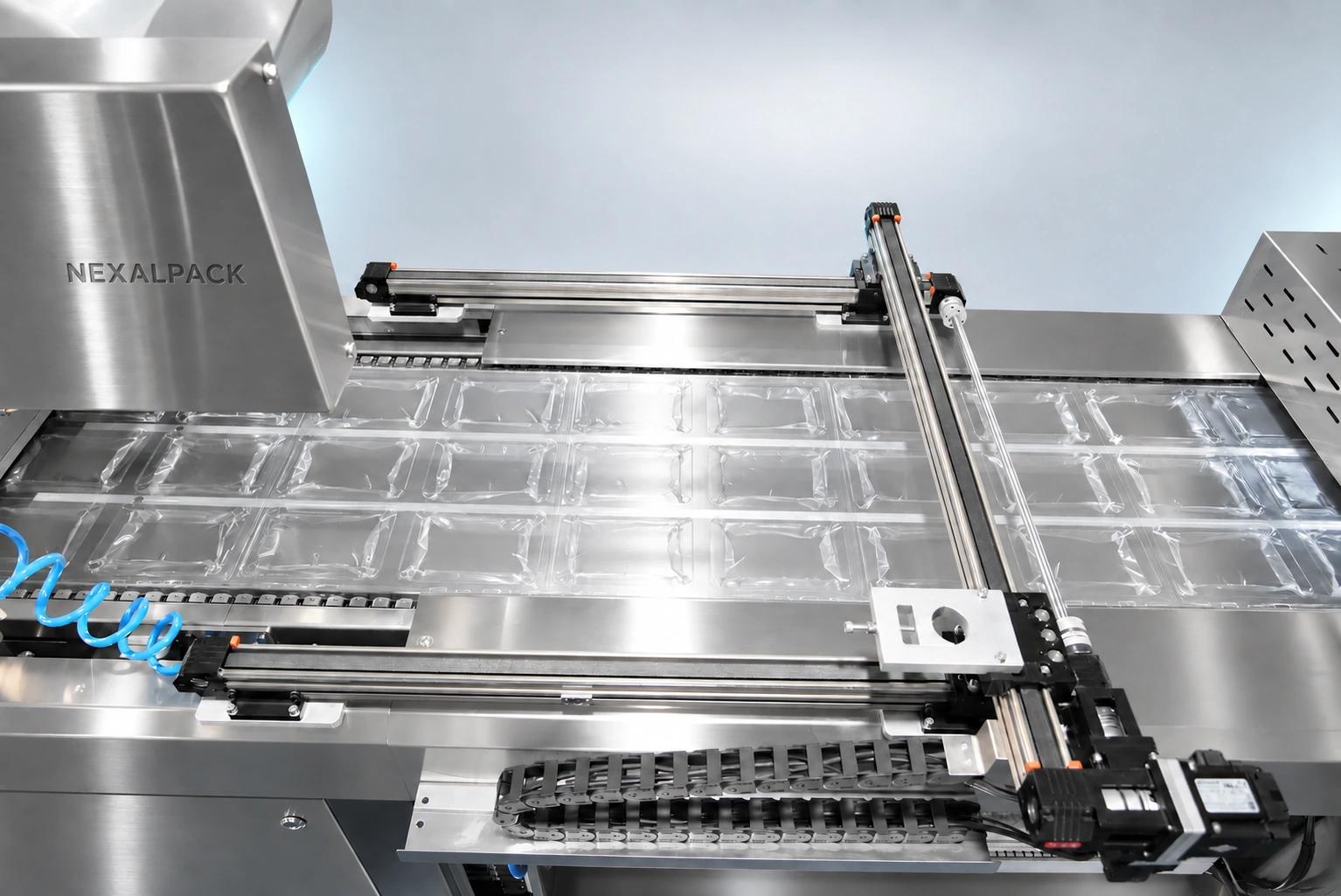

Studio render of NEX-420A-U thermoformer: cutting and discharge station detail
Cutting and discharge station detail · Studio render.
Dates sealed in a clear vacuum pack; illustrative application example
Dates sealed in a clear vacuum pack
THE FINISHED PACK / Dried fruit

Flexible vacuum pack

Dates sealed in a clear vacuum pack.

Packaging example. Final pack dimensions, materials and tooling are selected for your product.

Plan your packaging ↗
MACHINE CONFIGURATION

Designed for your application.

  • 300 m³/h Busch vacuum pump.
  • Integrated electrical cabinet.
  • Adjustable discharge-conveyor height for downstream integration.
  • Servo-controlled forming, sealing and cutting.
  • Gas-flushing and vacuum modes
  • Adjustable discharge conveyor height
  • Built-in electrical cabinet
  • Pre-tensioned film anti-drift device
  • Busch vacuum pump supplied with machine
  • Customisable labelling/printing equipment
  • Customisable cross-cut sealing profiles: toothed, flat and easy-tear
  • Customisable automatic feeding device
  • Flexible film: MAP and vacuum packaging
  • Rigid film: MAP and skin packaging
  • SUS304 guards at forming chamber, horizontal cutter and round cutter
  • Limit switch activates alarm when guard is opened
  • Film pre-tension and anti-deviation device
  • Adjustable discharge conveyor
  • Servo-driven sealing mechanism with adjustable position, speed and acceleration
  • Servo motor drive configuration
  • Custom extended loading area available
  • Optional gas inflation and MAP functions
  • Gas mixer and analyser for nitrogen, oxygen and carbon dioxide mixtures
  • Serrated notch as standard
  • Optional straight, crescent and special notch profiles
  • Automatic loading options: multihead weighing discharge, delta robot and liquid filling
  • Built-in or external vacuum pump configurations
  • Optional servo coding system with automatic date update
  • Optional laser marking with updateable content
  • Optional mechanical ribbon coding requiring manual content update
  • Optional TTO ribbon coding with automatic date update
  • Waste-film collection choices: motorised winding or suction barrel
TECHNICAL DATA

Technical specifications.

Model specifications
SpecificationValue
Supply voltage380V/50HZ 3P
Sealing power (kW)2-4KW
Air pressure (MPa)0.6-0.8
Upper film width (mm)398
Bottom film width (mm)422
Chamber size (L × W) (mm)384*(200-400)
Capacity (cycles/min)Vacuum: 12 cycles/min Vac-gas flush: 8 cycles/min
Cooling methodwater-cooled
Max. forming depth (mm)120
Dimensions (L × W × H) (mm)Without coder: 4770*915*1875 With coder: 5770*915*1875

Indicative technical data. “—” means no value is defined for that item. The final configuration and specifications are confirmed in our quotation for your product and format.
