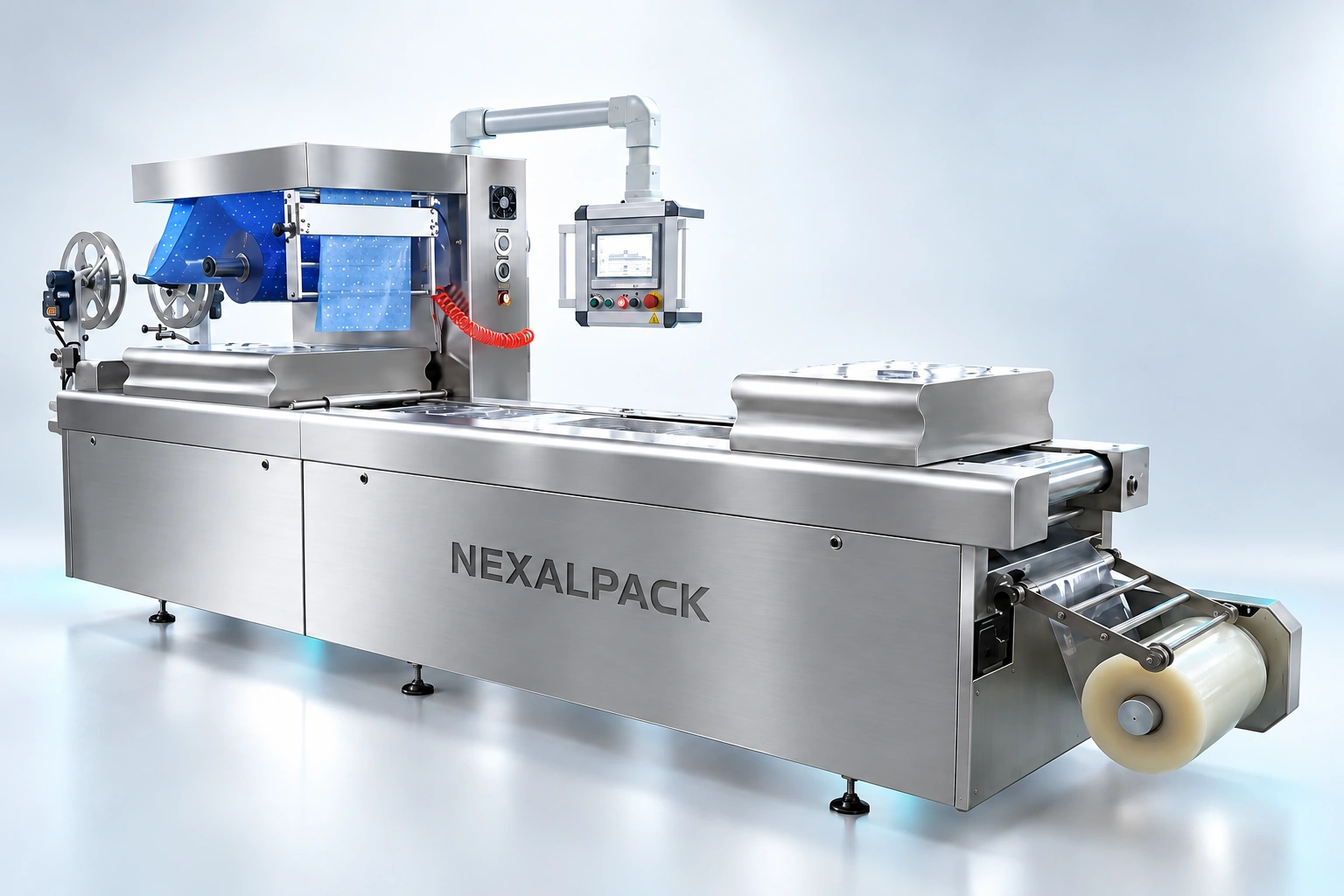

NEX-420A
Versatile thermoformer
A 422 mm bottom-film platform with interchangeable tooling and selectable pump capacity.
Enlarge image ↗Explore the machine.
Select a view to see the details.

Flexible vacuum pack
Vacuum-packed cheese assortment.
Packaging example. Final pack dimensions, materials and tooling are selected for your product.
Plan your packaging ↗Designed for your application.

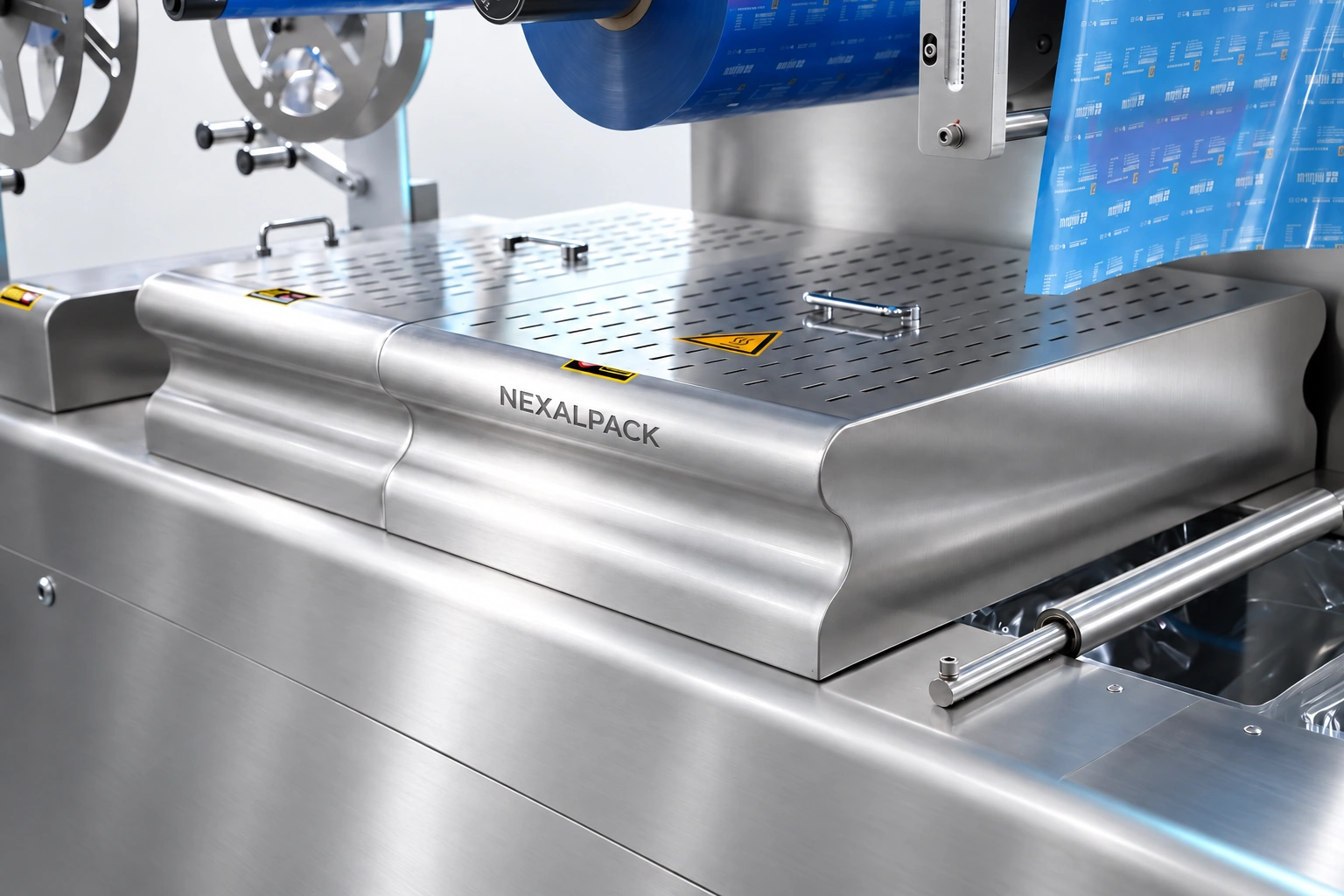

- Continuous film forming, manual or automatic loading, evacuation, sealing and cutting.
- Changeable tooling for different pack sizes.
- Sensor-controlled film registration for plain or printed film.
- Waste-film collection system.
- Stainless steel and aluminium-alloy main components.
- PLC touchscreen with adjustable movement and control parameters.
- Servo-driven mould feed; two Busch vacuum pumps.
- Colour-mark sensor for top and bottom film registration.
- Emergency stop, operating/fault display and phase-sequence protection.
- Safety guards for heating, cutting and moving parts
- Imported film-clamping chain
- Customized interchangeable moulds for flexible film
- Panasonic servo motor and driver
- Multilingual operating interface
- Busch vacuum pump
- 304 stainless steel casing
- High-strength aluminium alloy moulds
Technical specifications.
| Specification | Value |
|---|---|
| Voltage (V/Hz) | AC 380/50 |
| Sealing power (W) | 2000 |
| Compressed air (MPa) | 0.5-0.7 |
| Chamber size (L × W × H) (mm) | 384×(200-400) |
| Max. forming depth (mm) | ≤120 |
| Vacuum pump capacity (m³/h) | 100 or 160 or 200 |
| Capacity (cycles/min) | 4-6 |
| Cooling type | water-cooling |
| Upper film width (mm) | 392 |
| Lower film width (mm) | 422 |
| External dimensions (L × W × H) (mm) | 5200×1105×1895 |
| Net weight (kg) | Approx. 1800 |
Indicative technical data. “—” means no value is defined for that item. The final configuration and specifications are confirmed in our quotation for your product and format.
