Thermoforming / NEX-320A
Standard · NEXALPACK

NEX-320A

Rollstock thermoformer

A 322 mm bottom-film platform for continuous rollstock packaging.

4–6 cycles/min322 mm bottom film
Enquire about this model ↗Technical specifications ↓
NEX-320A Rollstock thermoformer — studio renderEnlarge image ↗
Studio render of the machine.
A CLOSER LOOK

Explore the machine.

Select a view to see the details.

NEX-320A Rollstock thermoformer — studio render
Main view · Studio render.

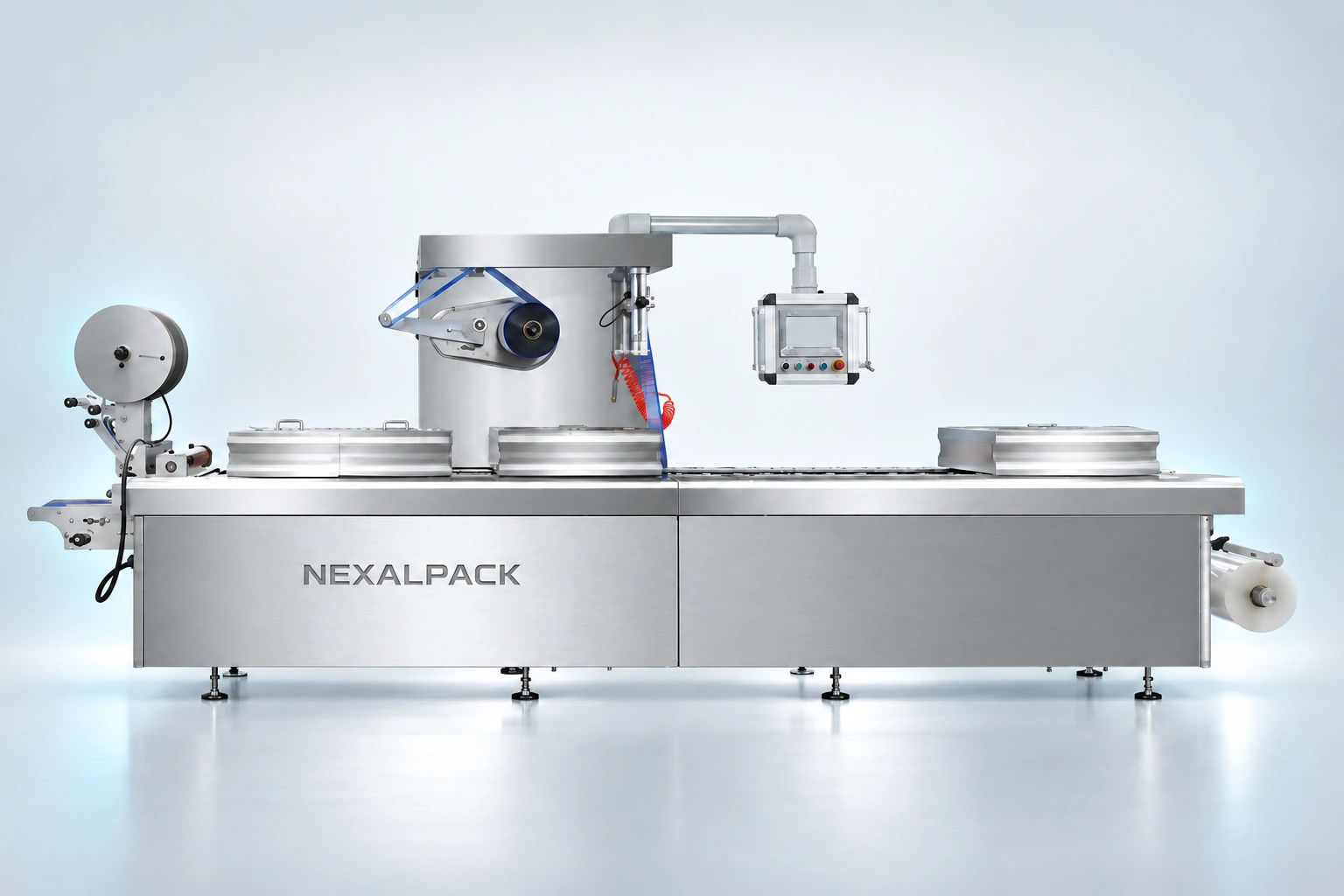

Studio render of NEX-320A thermoformer: side view
Side elevation full machine · Studio render.

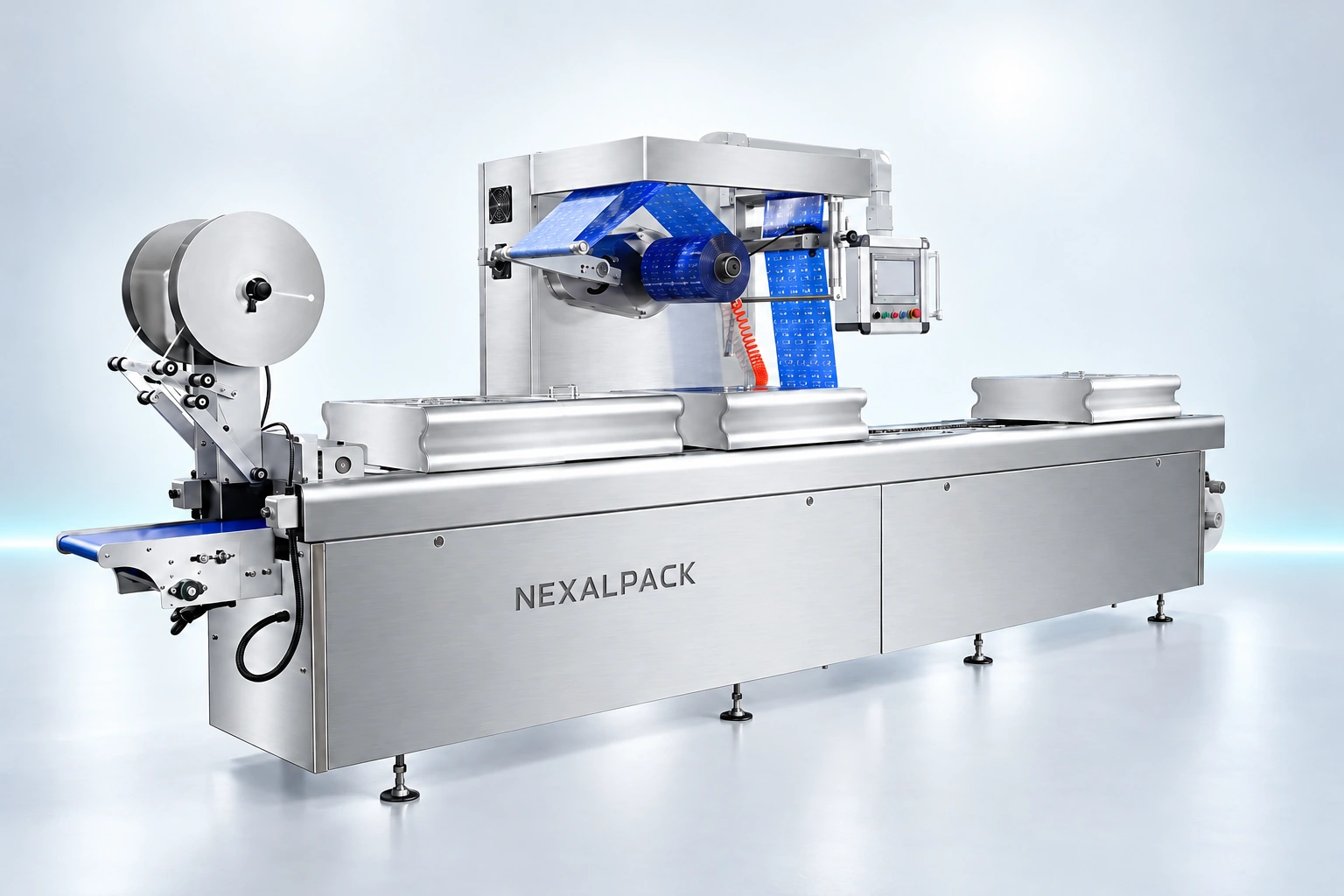

Studio render of NEX-320A thermoformer: opposite three-quarter view
Opposite three-quarter full machine · Studio render.
Vacuum-sealed sweetcorn; illustrative application example
Vacuum-sealed sweetcorn
THE FINISHED PACK / Fresh produce

Flexible vacuum pack

Vacuum-sealed sweetcorn.

Packaging example. Final pack dimensions, materials and tooling are selected for your product.

Plan your packaging ↗
MACHINE CONFIGURATION

Designed for your application.

  • Continuous film forming, manual or automatic loading, evacuation, sealing and cutting.
  • Changeable tooling for different pack sizes.
  • Sensor-controlled film registration for plain or printed film.
  • Waste-film collection system.
  • Safety guards for heating, cutting and moving parts
  • Imported film-clamping chain
  • Customized interchangeable moulds for flexible film
  • Panasonic servo motor and driver
  • Multilingual operating interface
  • Busch vacuum pump
  • 304 stainless steel casing
  • High-strength aluminium alloy moulds
  • Waste-film recovery
  • Optional mobile inkjet module
  • Longitudinal and horizontal cutters
  • Bottom-film forming station
  • Vacuum-sealing station
TECHNICAL DATA

Technical specifications.

Model specifications
SpecificationValue
Voltage (V/Hz)AC 380/50
Sealing power (W)2000
Compressed air (MPa)0.5-0.6
Chamber size (L × W × H) (mm)284×(200-400)
Max. forming depth (mm)≤120
Vacuum pump capacity (m³/h)100 or 160 or 200
Capacity (cycles/min)4-6 times/min
Cooling typewater-cooling
Upper film width (mm)292
Lower film width (mm)322
External dimensions (L × W × H) (mm)5200x1005x1895
Net weight (kg)Approx.1500

Indicative technical data. “—” means no value is defined for that item. The final configuration and specifications are confirmed in our quotation for your product and format.
