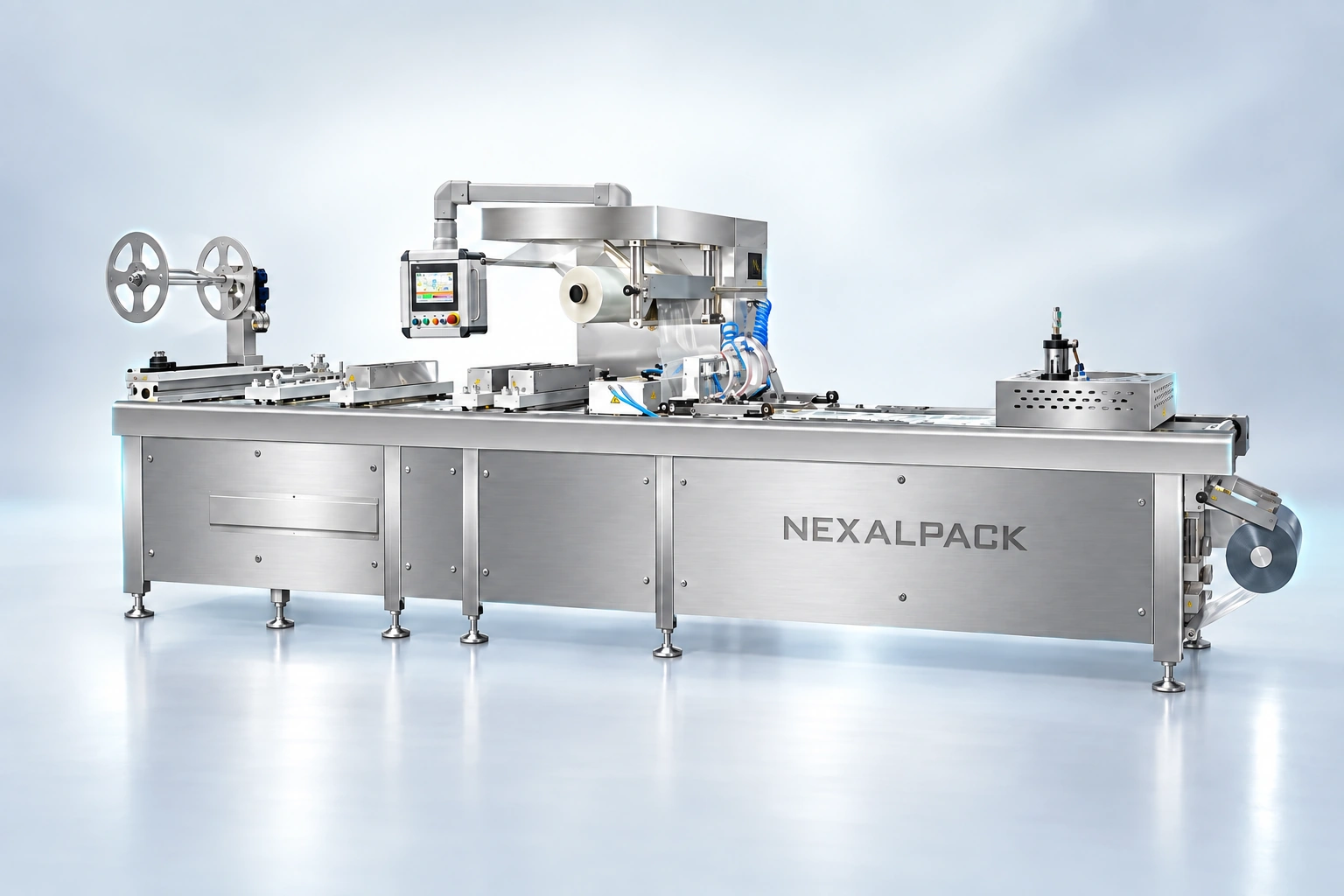

NEX-420T(Q)
Rigid & flexible film thermoformer
A configurable thermoforming platform for rigid and flexible films, with vacuum and gas-flush sealing.
Enlarge image ↗Explore the machine.
Select a view to see the details.

Rigid film tray
Sealed prepared-meal trays.
Packaging example. Final pack dimensions, materials and tooling are selected for your product.
Plan your packaging ↗Designed for your application.
- PLC touchscreen and quick-change moulds.
- SUS304 guards at the forming chamber and cutting stations, with guard-open alarm.
- Servo sealing with adjustable position, speed and acceleration.
- Integrated electrical cabinet and adjustable conveyor height.
- Optional gas flushing, different tear-notch styles and motorised or suction waste-film collection.
- Built-in or external vacuum pump; the built-in option adds about 1 m to the machine length.

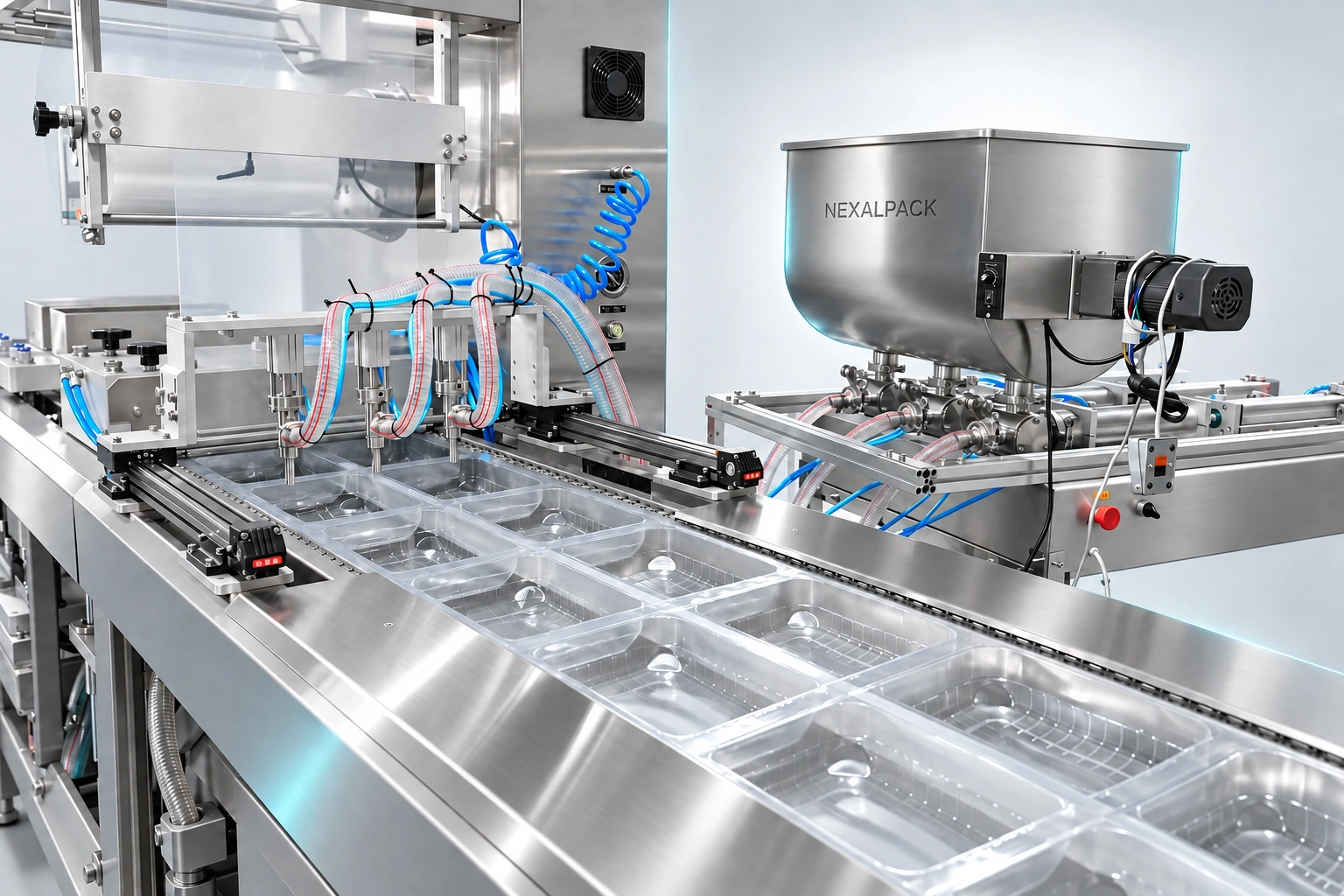

- Optional multihead-weigher loading, delta-robot loading or liquid filling.
Technical specifications.
| Specification | Value |
|---|---|
| Supply voltage | 380V/50HZ 3P |
| Sealing power (kW) | 2-4KW |
| Air pressure (MPa) | 0.6-0.8 |
| Upper film width (mm) | 398 |
| Bottom film width (mm) | 422 |
| Chamber size (L × W) (mm) | 384*(200-400) |
| Capacity (cycles/min) | Vacuum or vacuum + gas flush + sealing: 4-6 cycles/min |
| Cooling method | water-cooled |
| Max. forming depth (mm) | 120 |
| Dimensions (L × W × H) (mm) | Without coder: 4770*915*1875 With coder: 5770*915*1875 |
Indicative technical data. “—” means no value is defined for that item. The final configuration and specifications are confirmed in our quotation for your product and format.
