Thermoforming / NEX-420S
Aluminium film · NEXALPACK

NEX-420S

Aluminium-film thermoformer

A thermoforming configuration for aluminium composite film, with shallow upper and lower forming depths.

4–6 cycles/min422 mm bottom film
Enquire about this model ↗Technical specifications ↓
NEX-420S Aluminium-film thermoformer — studio renderEnlarge image ↗
Studio render of the machine.
A CLOSER LOOK

Explore the machine.

Select a view to see the details.

NEX-420S Aluminium-film thermoformer — studio render
Main view · Studio render.

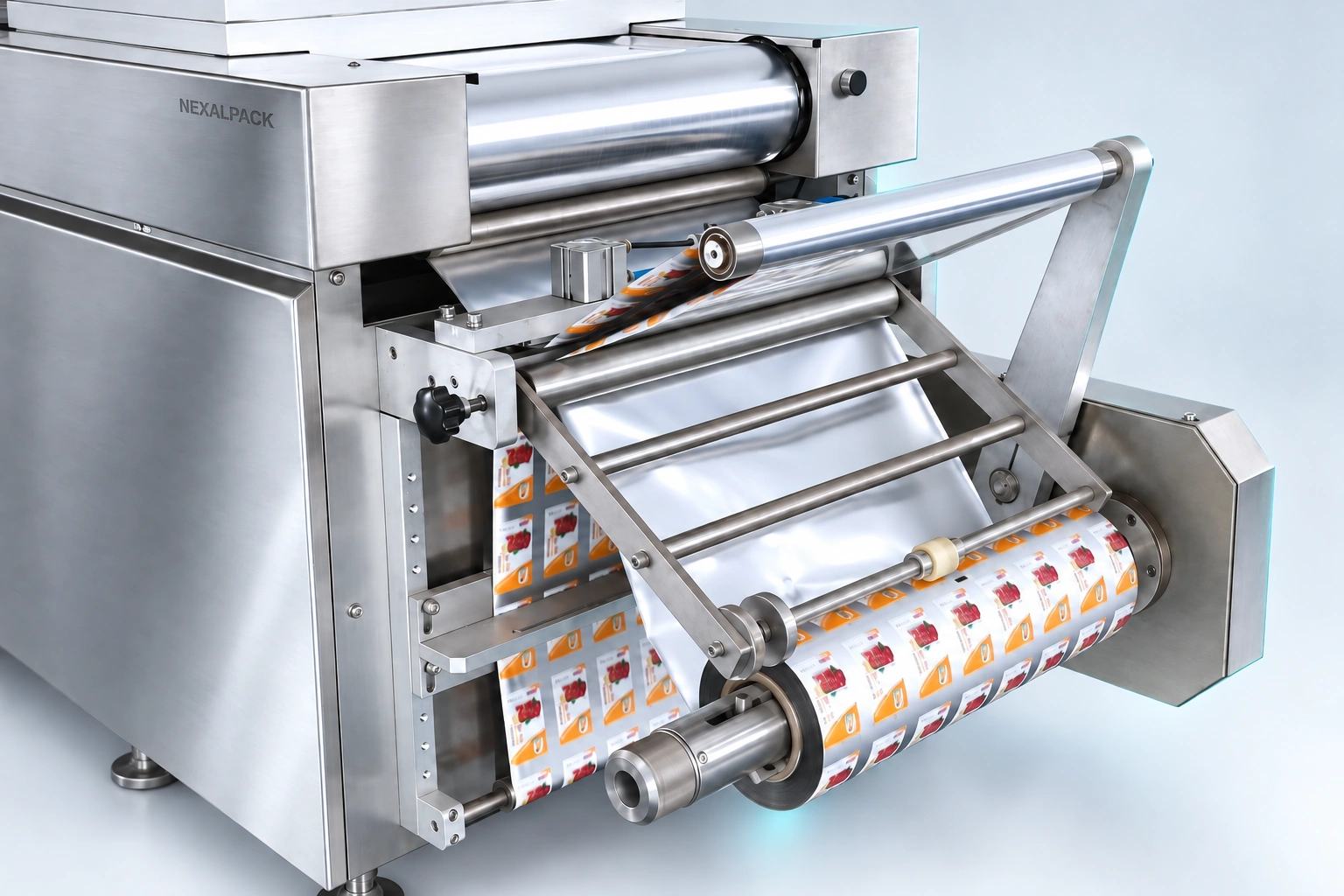

Studio render of NEX-420S thermoformer: film discharge and roller assembly detail
Film discharge and roller assembly detail · Studio render.

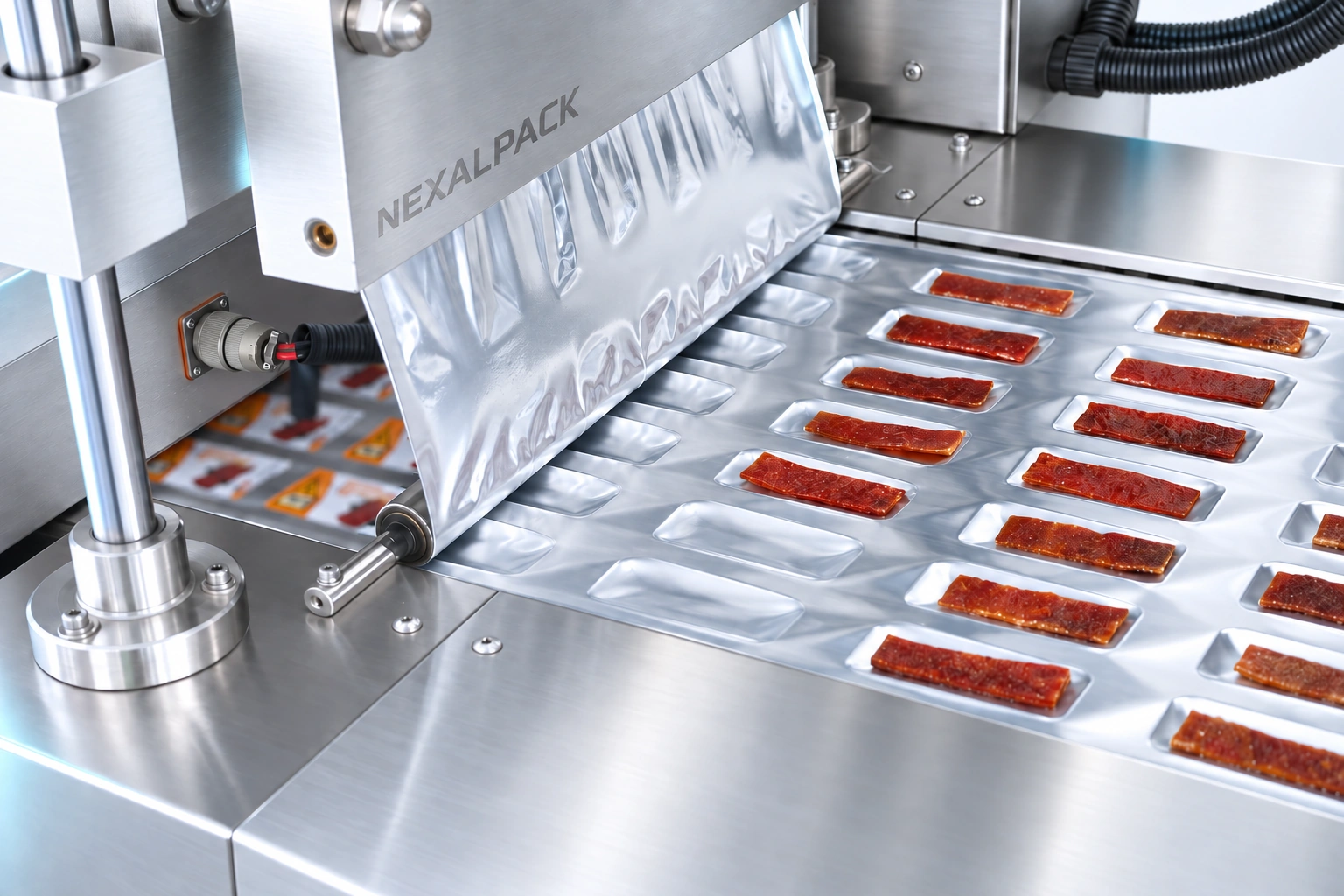

Studio render of NEX-420S thermoformer: aluminium film sealing station detail
Aluminium film sealing station detail · Studio render.

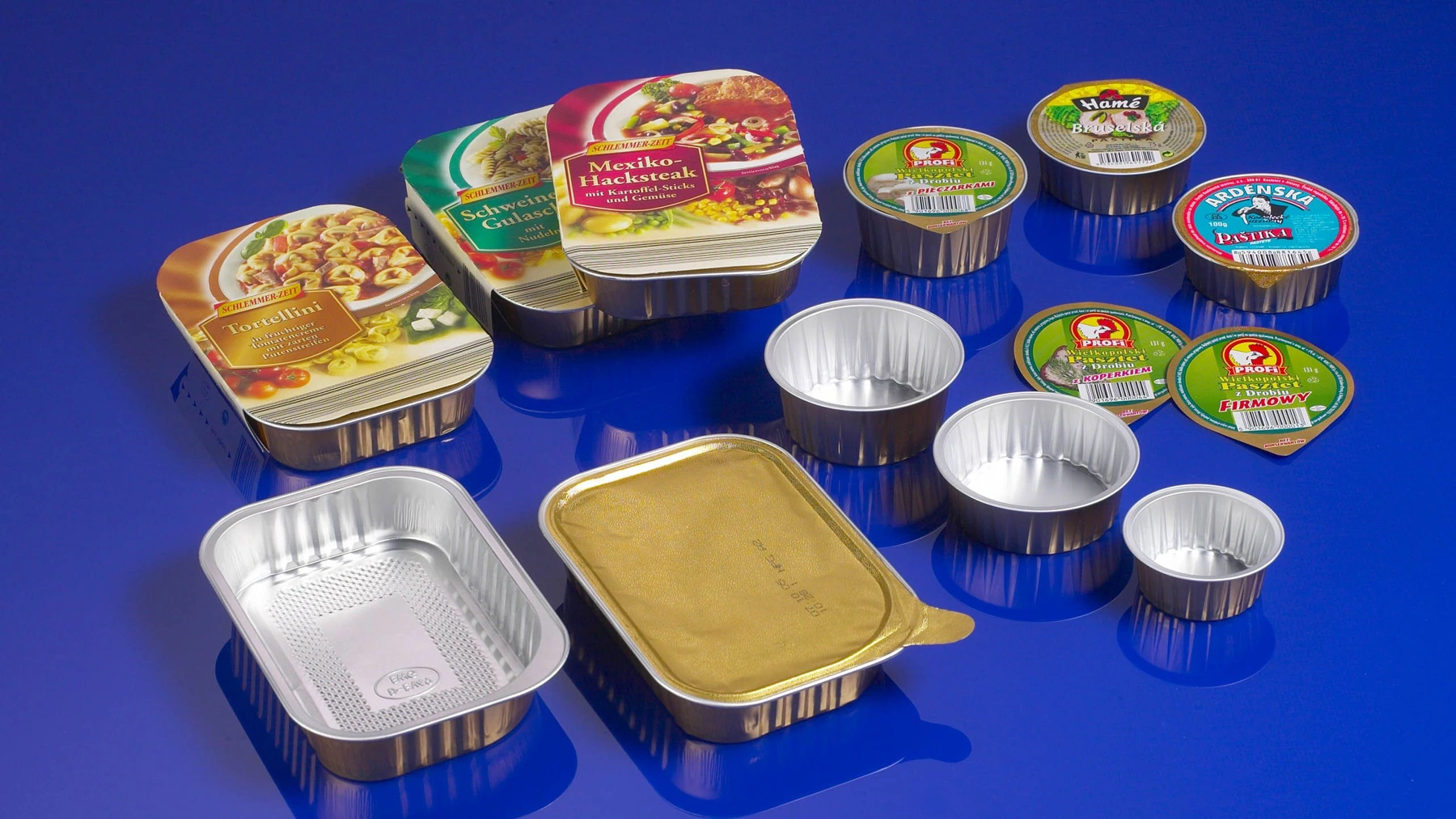

Sealed aluminium-laminate food packs; material and format example
Sealed aluminium-laminate food packs — material-format illustration
THE FINISHED PACK / Prepared foods

Aluminium-laminate sealed pack

Aluminium-laminate packaging shown as a material-format example. Compatibility with this machine requires confirmation of the laminate, forming process and tooling.

Packaging example. Final pack dimensions, materials and tooling are selected for your product.

Plan your packaging ↗
MACHINE CONFIGURATION

Designed for your application.

  • Aluminium composite film; vacuum, MAP and VSP for the S series.
  • Water cooling.
  • Solid products and soups.
TECHNICAL DATA

Technical specifications.

Model specifications — range overview
SpecificationValue
Voltage (V/Hz)380/50 (3Phase)
Sealing power (kW)2
Gas pressure (MPa)0.5-0.6
Cooling typeWater Cooling
Upper film width (mm)392
Lower film width (mm)422
Material typeSolid/Soup
Max. forming depth (mm)Upper Film: ≤5 Bottom Film ≤10
Capacity (cycles/min)4-6
Chamber size (L × W) (mm)300×(200-400)
External dimensions (L × W × H) (mm)6000×1050×2000
Net weight (kg)2000

Indicative technical data. “—” means no value is defined for that item. The final configuration and specifications are confirmed in our quotation for your product and format.
