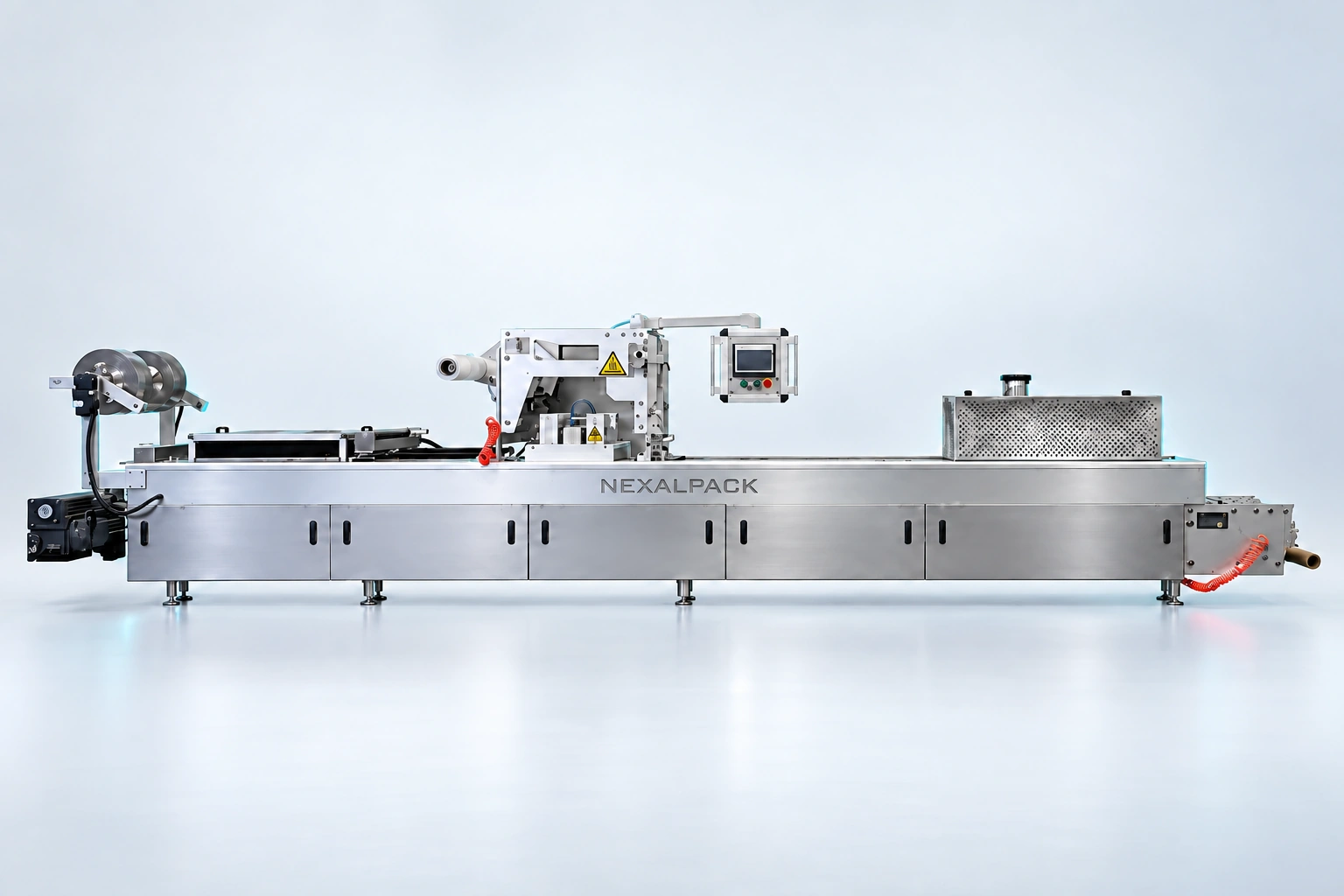

NEX-520A
Wide-format thermoformer
A 522 mm bottom-film platform for wider packaging layouts.
Enlarge image ↗Explore the machine.
Select a view to see the details.

Thermoformed vacuum pack
Poultry portions in clear formed packaging.
Packaging example. Final pack dimensions, materials and tooling are selected for your product.
Plan your packaging ↗Designed for your application.

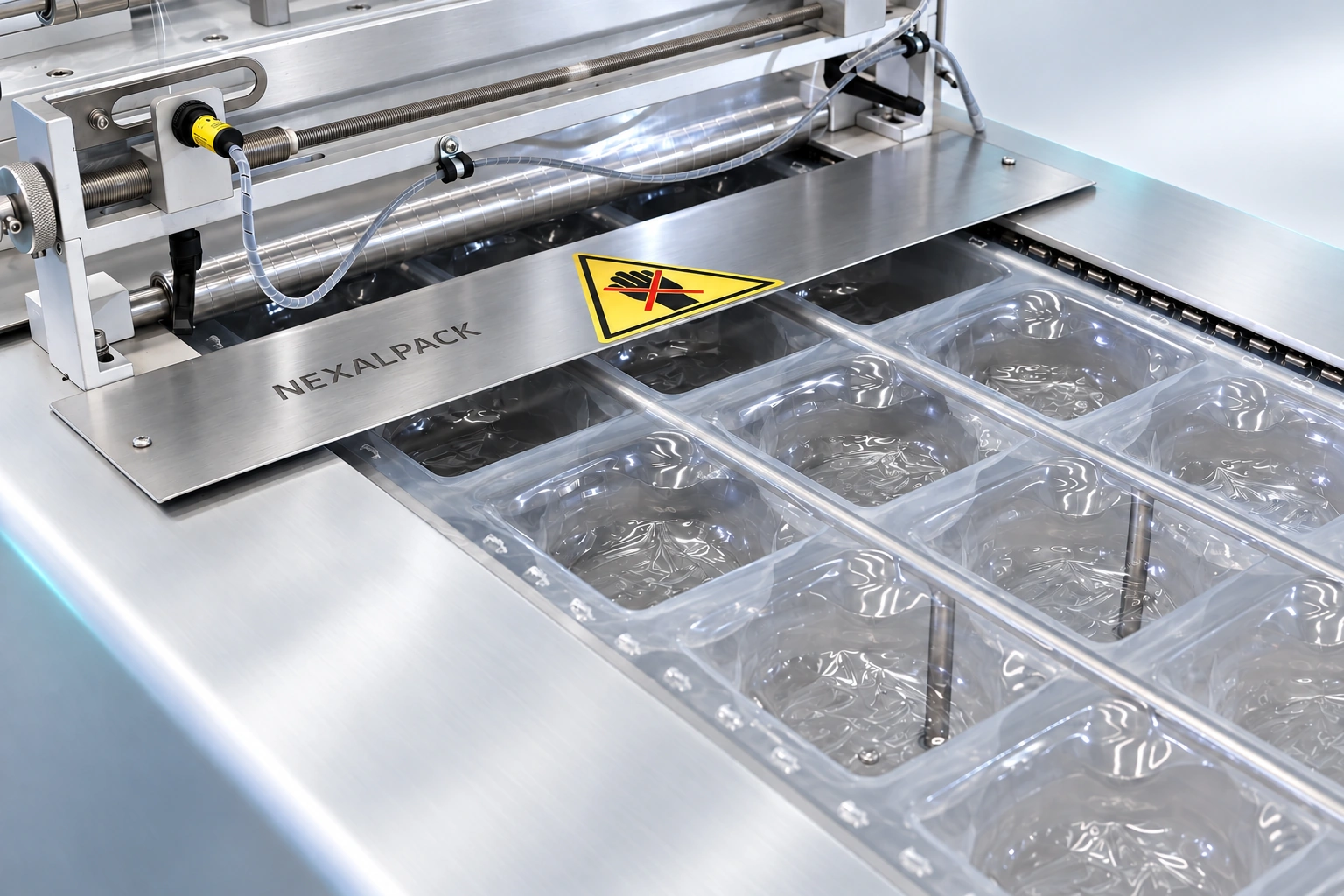

- Continuous film forming, manual or automatic loading, evacuation, sealing and cutting.
- Changeable tooling for different pack sizes.
- Sensor-controlled film registration for plain or printed film.
- Waste-film collection system.
- Safety guards for heating, cutting and moving parts
- Imported film-clamping chain
- Customized interchangeable moulds for flexible film
- Panasonic servo motor and driver
- Multilingual operating interface
- Busch vacuum pump
- 304 stainless steel casing
- High-strength aluminium alloy moulds
Technical specifications.
| Specification | Value |
|---|---|
| Voltage (V/Hz) | AC 380/50 |
| Sealing power (W) | 2000 |
| Compressed air (MPa) | 0.5-0.6 |
| Chamber size (L × W × H) (mm) | 484×(200-600) |
| Max. forming depth (mm) | ≤120 |
| Vacuum pump capacity (m³/h) | 100 or 160 or 200 |
| Capacity (cycles/min) | 4-6 times/min |
| Cooling type | water-cooling |
| Upper film width (mm) | 492 |
| Lower film width (mm) | 522 |
| External dimensions (L × W × H) (mm) | 5200x1205x1895 |
| Net weight (kg) | Approx. 2000 |
Indicative technical data. “—” means no value is defined for that item. The final configuration and specifications are confirmed in our quotation for your product and format.
